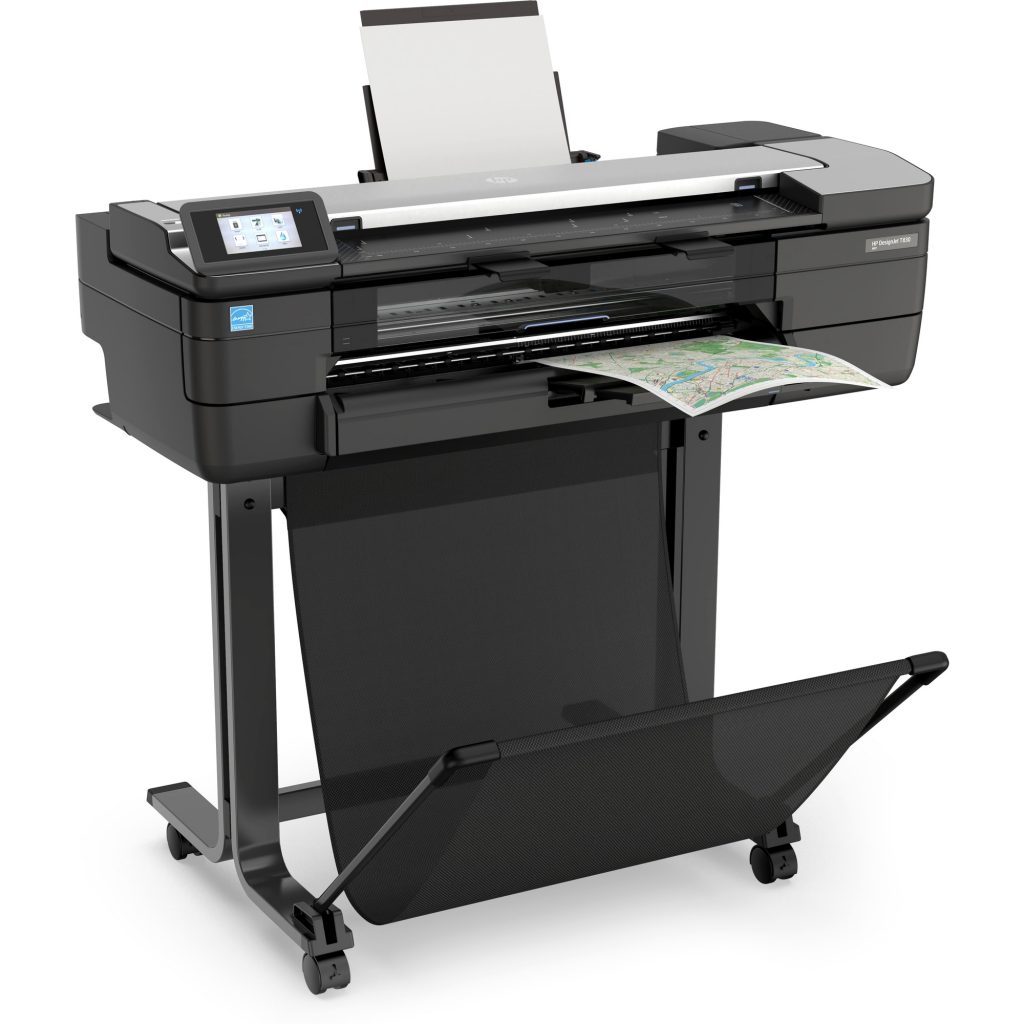

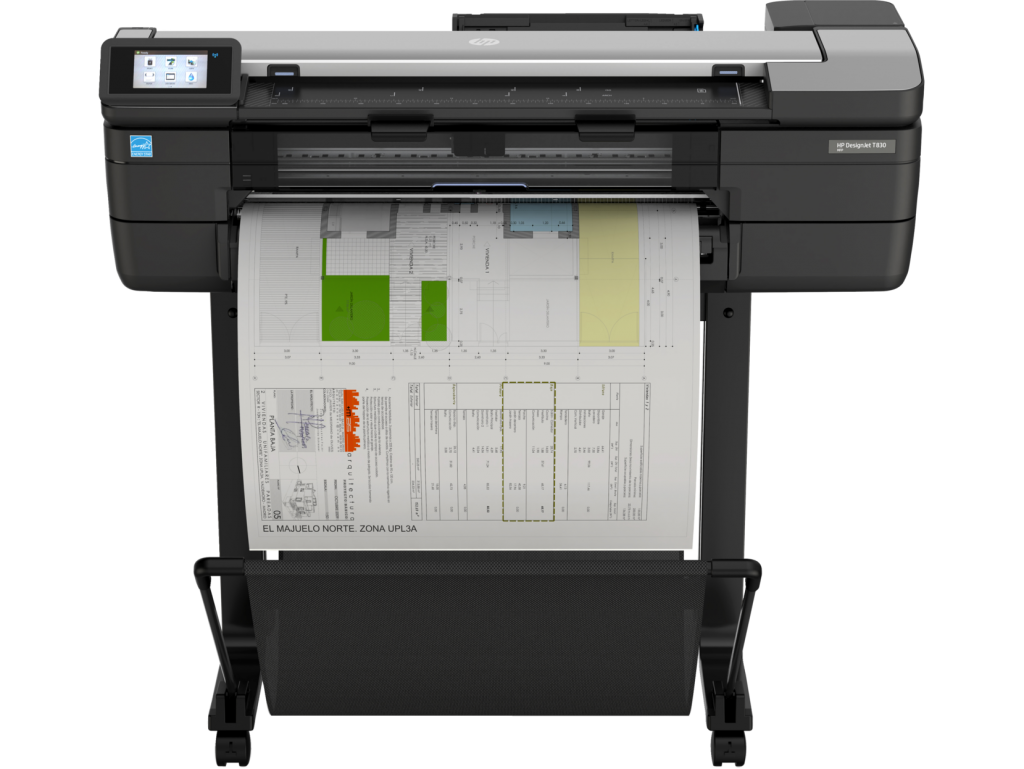

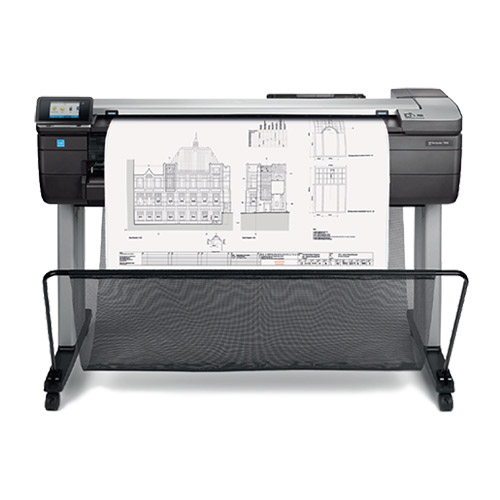

HP DesignJet T830 24-in Multifunction Printer

Print technology: HP Thermal Inkjet
Average weekly print volume (D/A1): 90 A1/D prints per week
Print languages: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF
Model size: 610 mm
Guaranteed minimum line width: 0.07 mm (ISO/IEC 13660:2001(E))
Guaranteed minimum line width footnote: Measured on HP Matte Film
Theoretical minimum line width: 0.02 mm (HP-GL/2 addressable)
Line accuracy: ±0.1%[2]
Line accuracy note: ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A1/D HP Heavyweight media in Best or Normal mode with Original HP inks
Print speed: 26 sec/page on A1, 81 A1 prints per hour
Print speed line drawing (economode, A1 plain paper): 81 A1 prints per hour
Print time line drawing (economode, A1 plain paper): 26 sec/page
Maximum optical density (black): 8 L* min/2.10 D[3]
Print quality color (best): Up to 2400 x 1200 optimized dpi
Maximum optical density footnote (black): With HP Premium Instant Dry Photo Gloss media with Original HP inks.
Non-printable area (cut-sheet): 5 x 5 x 5 x 5 mm
Non-printable area (roll media): 5 x 5 x 5 x 5 mm
Printing path: Wi-Fi Direct to enable mobile printing via HP ePrint, Apple AirPrint and HP Smart app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, print from USB pen drive
Printer drivers included: HP-GL/2, HP-RTL drivers for Windows; Raster driver for macOS and Windows
Internal Storage: None
Memory: 1 GB
Scanner type: Sheetfed, CIS (Contact Image Sensor), media jam detection sensor, front feed scanning method
Scan size, maximum: 610 mm x 2.77 m
Scan size, minimum: 203 x 127 mm
Scan file format: JPEG, PDF, TIFF
Scan input modes: Scan to email, scan to cloud (through HP Smart app), network, USB, computer, mobile
Maximum media thickness: 0.8 mm
Linear scan speed: Up to 3.81 cm/sec (color, 200 dpi); Up to 11.43 cm/sec (grayscale, 200 dpi)
Scan speed footnote: Measured at 200 dpi in color and grayscale
Scan Resolution, Optical: Up to 600 dpi
Copier settings: Content type; Lighter/Darker; Background noise removal; Background color removal; Blue print invert; Translucent media; Color; Scan full width (24-in); Auto De-skew; Resize; Copy Margins; Quality
Copies, maximum: Up to 99 copies
Copy reduce / enlarge settings: 50 to 400%
Enhanced scanning resolution: 600 dpi
Connectivity, standard: Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n
Connectivity, optional HP USB 3.0 to Gigabit LAN Adapter
Network ready: Standard
HP ePrint capability: Yes
Mobile printing capability: Wi-Fi Direct and local Wi-Fi connectivity to enable mobile printing via HP ePrint, Apple AirPrint™ and HP Smart App. Supports printing from most smartphones and tablets using these operating systems: Android, iOS
Number of print cartridges: 4 (C, M, Y, mK)
Print cartridge volume delivered: HP 728 Ink Cartridge: matte black, cyan, magenta, yellow (300 ml); cyan, magenta, yellow (130 ml); matte black (69 ml); cyan, magenta, yellow (40 ml)
Print heads: 1 (C, M, Y, mK)
Print head nozzles: 1376
Ink drop: 6 pl (C, M, Y); 12.6 pl (mK)
Ink types: Dye-based (C, M, Y); pigment-based (mK)
Finished output handling: Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter
Media types: Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
Media sizes supported Input tray: A4, A3; Manual feed: A2, A1
Media sizes, custom: Input tray: 210 x 279 to 330 x 482 mm; Manual feed: 330 x 482 to 610 x 1897 mm
Media sizes standard (metric rolls): 279 to 610 mm
Media width, maximum: 610 mm
Media weight, recommended: 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)
Media thickness: Up to 11.8 mil
Roll external diameter: 100 mm
Roll maximum input: 1
Roll maximum weight: 4.1 kg
Supported Primary Applications: Line drawings; Renderings; Presentations
Dimensions without stand (W x D x H): 1098 x 605 x 1155 mm
Package dimensions (W x D x H): 1310 x 570 x 645 mm
Weight: 46.7 kg
Package weight: 65.7 kg
What’s in the box: HP DesignJet T830 24-in MFP, printhead, ink cartridges, printer stand, spindle, quick reference guide, setup poster, startup software, power cord, refeed preventers
Software included: HP Click, HP Smart app, HP Support Assistant, HP Print Preview for Windows, HP DesignJet Utility for macOS and Windows
Warranty: Three-year limited warranty. Warranty and support options vary by product, country and local legal requirements.
